Series 30 incremental shaft encoder

---

3

0

X

X

-

0

1

X

X

-

X

X

X

X

Shaft Size

Connection

Resolution - ppr

02 = 3/8"

09 = 6 pole MS , output ABO

12 = 12 mm

10 = 7 pole MS , output AB & AB inv

17 = 12 mm

11 = 7 pole MS , output ABO

with M5

20 = 6 ft cable , output AB & AB inv

center hole

37 = 6 pole MS , output AB & AB inv

Other options available

---

Select your options below and buy online, easily and securely, with PayPal (from $330)  Shaft                             Connections                               Resolution        3/8 inch      12 mm      12 mm w/ M5 center            6 pole MS, output A,B,O      7 pole MS, output AB, AB inv      7 pole MS, output A,B,O      6 ft cable, output AB, AB inv      6 pole MS, output AB, AB inv            1 ppr      10 ppr      100 ppr      200 ppr      256 ppr      300 ppr      360 ppr      500 ppr      512 ppr      1000 ppr      1024 ppr      1500 ppr

---

Technical Data			Connection Options
Operating temp:	- 20 ...+   60 degrees C			6 pole	7 black Cable	Cable
	-   4 ...+ 140 degrees F		PS GND	F	F	Black
Higher Temperature:	Please consult		PS 5 ... 24 V	D	D	Blue
Max frequency:	50 kHz		Output A	A	A	Brown
Current consumption:	80 mA (max.)		Output B	B	B	Beige
Power supply:	5 - 24V		Output O	C	C	Pink
Weight:	11 oz (0.3 kg)		Output A inv		G	Yellow
Protection:	IP 54, NEMA 3		Output B inv		E	Green
Housing:	Die Cast Zinc Alloy		Output O inv			Violet
Shaft:	Stainless Steel
Bearings:	2 x 6001 ZZ C2		Output
Torque:	0.4 oz/in (3 N-cm)		A is 90 degrees before B in clockwise direction
Humidity:	Up to 98% permissible
Speed:	3000 RPM max.
Shock:	10g (6msec)
Vibration:	5g (500 Hz)
Shaft load:	Supports its own weight
Line driver output max:	50 mA per channel
Max. ppr	1500

Mounting Instructions

Hook up the encoder with the connections as described.  Make sure power supply meets specifications. Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling

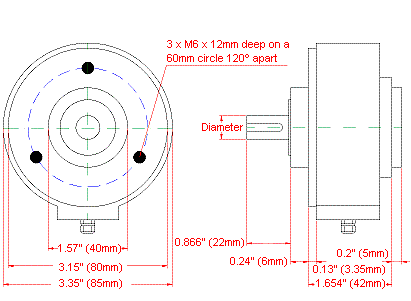

Dimensions

Standard
30		Medium Duty Standard Encoder Standard Version
INHO		58 mm Standard Encoder Standard Version          Intrinsically Safe Version
N20		2" (H20 Equivalent Square and Round) US Standard NAMUR (Standard) Output Version         5...24V Line Driver Version
INSQ		2.5" Square American Standard Encoder Standard Version
NAMYQX		2.5" US Standard Heavy Duty IP66 Encoders NAMUR (Standard) Output Version         5...24V Line Driver Version
IN / IP30		90 mm Standard Heavy Duty Encoder Standard Version          Intrinsically Safe Version
Special
DXE & DXL		90 mm Exd IP66 'Extreme' Encoder (functional at -40 degrees optional) Standard Version (DXE)         -40 Degree Version (DXL)
RXE & RXL		72 mm Exd IP66 Encoder (functional at -40 degrees optional) Standard Version (RXE)         -40 Degree Version (RXL)
H (Italy)		58 mm Extremely High Resolution Encoder (up to 90,000 pulses) Standard Version
SUBXWD		Submersible Encoder rated to 1000m (3000ft) (100 bar) depth Standard Version
